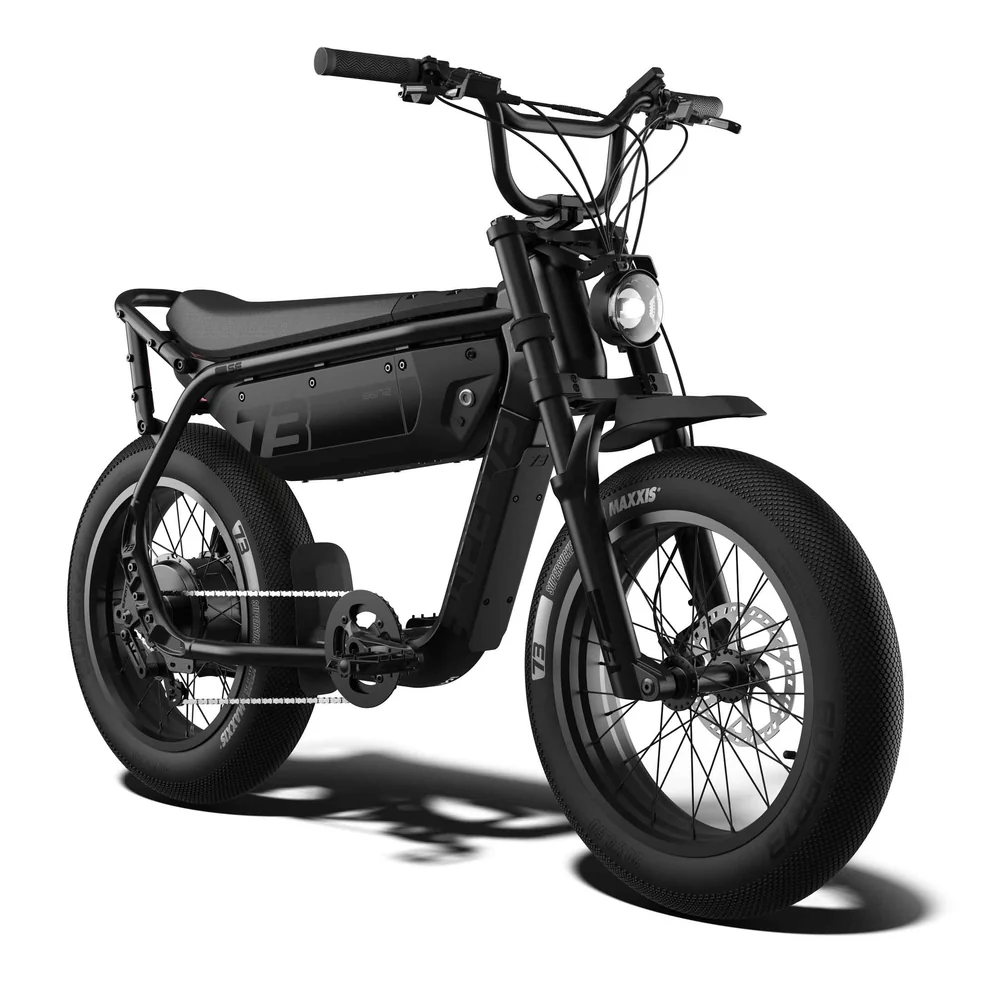

SUPER73-M1D SE Electric Bike – High-Performance 52V Fat Tire Urban Cruiser (A-Series)

The New Wave: Sized Intelligently for Daily Utility The SUPER73-M1D SE is built on the brand’s highly anticipated A-Series platform, completely re-engineered from the ground up with an ultra-rigid chassis and heavy-duty thru-axle architecture. Designed to solve the awkward, overly stretched riding position of traditional moto-style e-bikes, the M1D delivers an optimized 30-inch seat height. This mid-profile sweet spot allows a massive range of riders to comfortably swing a leg over, confidently plant a foot at red lights, and effortlessly weave through tight city streets.

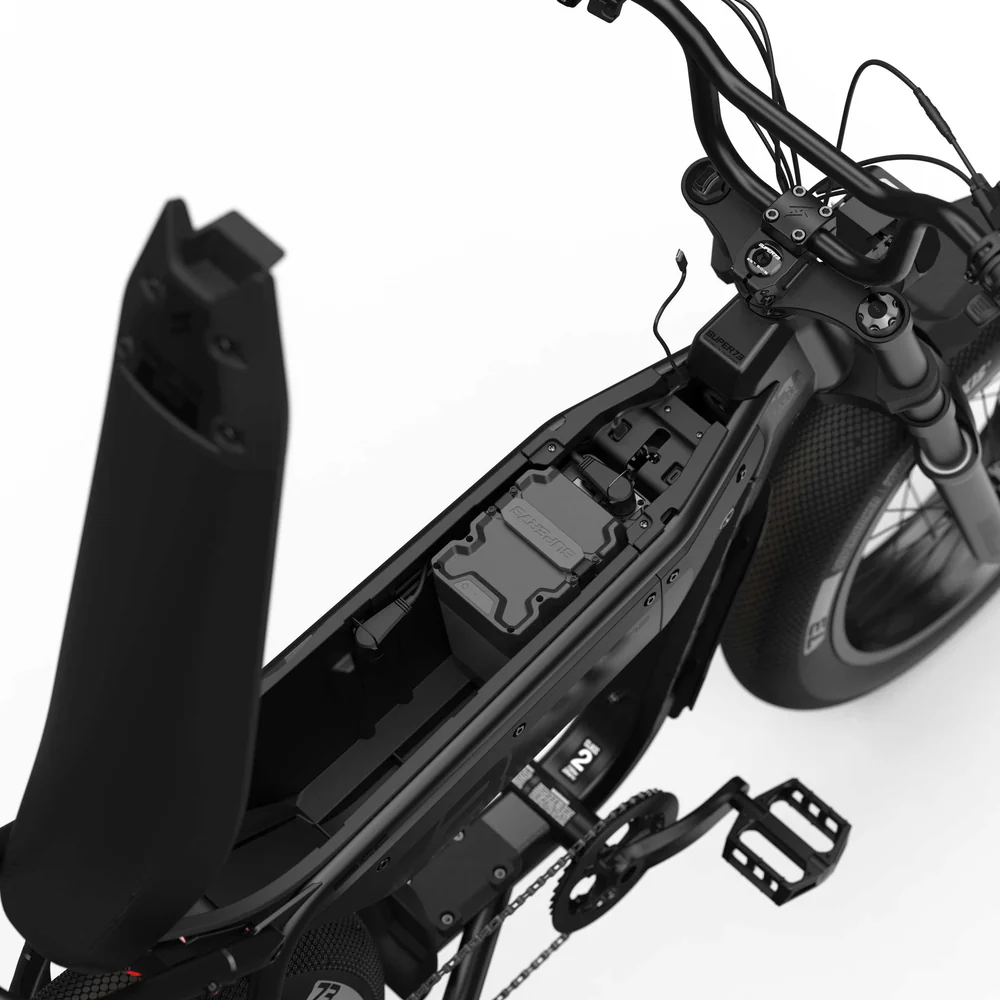

Massive Torque & Extended Modular Range Under the hood, the SE trim pulls zero punches. Driven by a punchy 750W nominal motor paired with a snappy 52V electronics system, it delivers immediate throttle response and robust uphill climbing torque. Tucked beneath the flip-up bench seat is an internal lockable storage compartment holding a large 780Wh primary battery, with dedicated structural room to add a second modular battery (sold separately). Keep it single for a quick daily sprint, or dual-load it to instantly double your range for long-distance urban exploration.

Premium Special Edition Hardware The Special Edition designation guarantees heavy-duty, uncompromised components. To isolate you from jarring pavement, tracks, and potholes, the M1D SE boasts an adjustable front suspension fork for an incredibly smooth, controlled front end. Braking is immediate and reliable thanks to high-performance 4-piston hydraulic disc brakes, giving you elite stopping power with minimal lever force. The look is completed by premium, oversized Maxxis SuperSucker street fat tires (4.5″ front, 5″ rear) that provide a low-slung stance and unmatched cornering grip on wet or dry asphalt.

SPECIFICATIONS & PERFORMANCE BREAKDOWN

⚡ Performance & Electronics

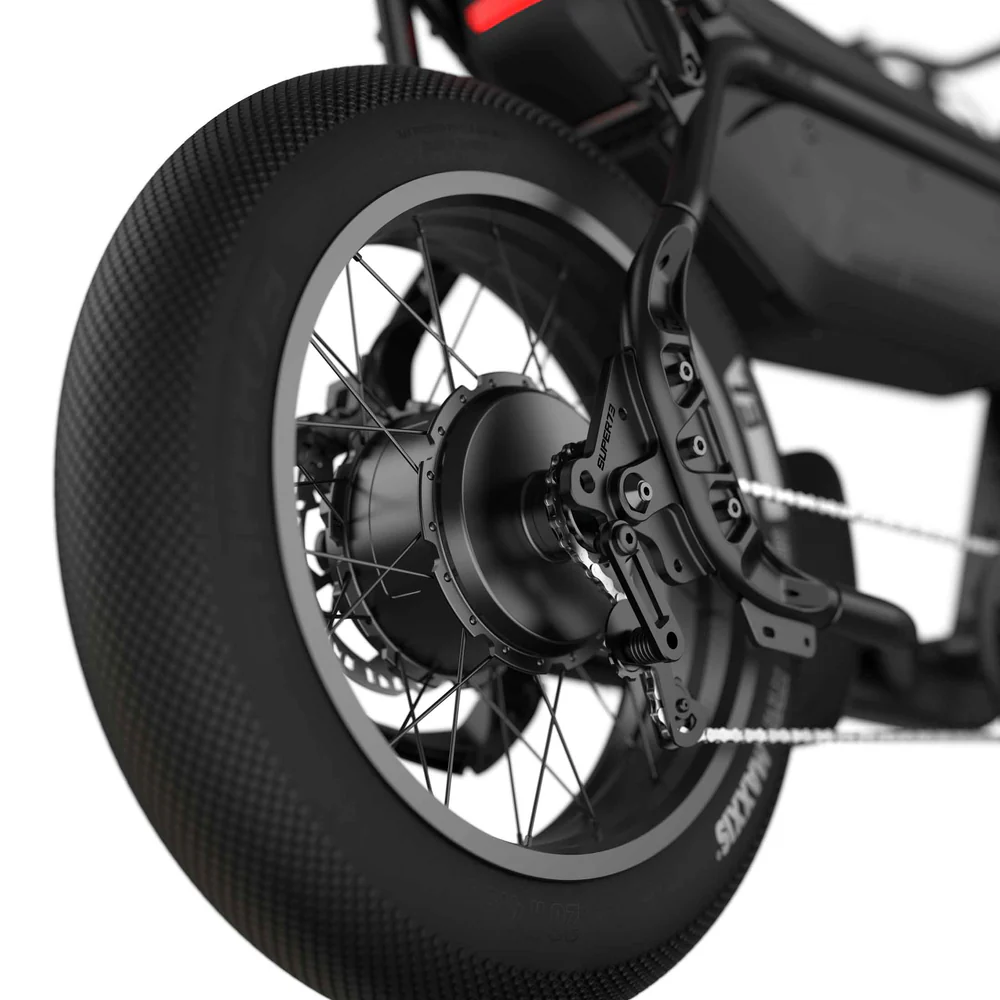

• Motor: 750W nominal rear hub motor (delivering high-torque output for quick acceleration).

• Top Speed: Limited to 20 MPH out of the box (Class 2 compliance with an on-demand thumb throttle).

• High-Voltage Battery: Powered by a heavy-duty 780Wh (52V 15Ah) lithium-ion battery pack. Fully UL2271 compliant to meet modern global charging and safety standards.

• Range (Single vs. Dual Battery):

  • Single Stock Battery: Provides an urban-ready 25–30 miles of real-world range under standard 20 mph throttle operation.

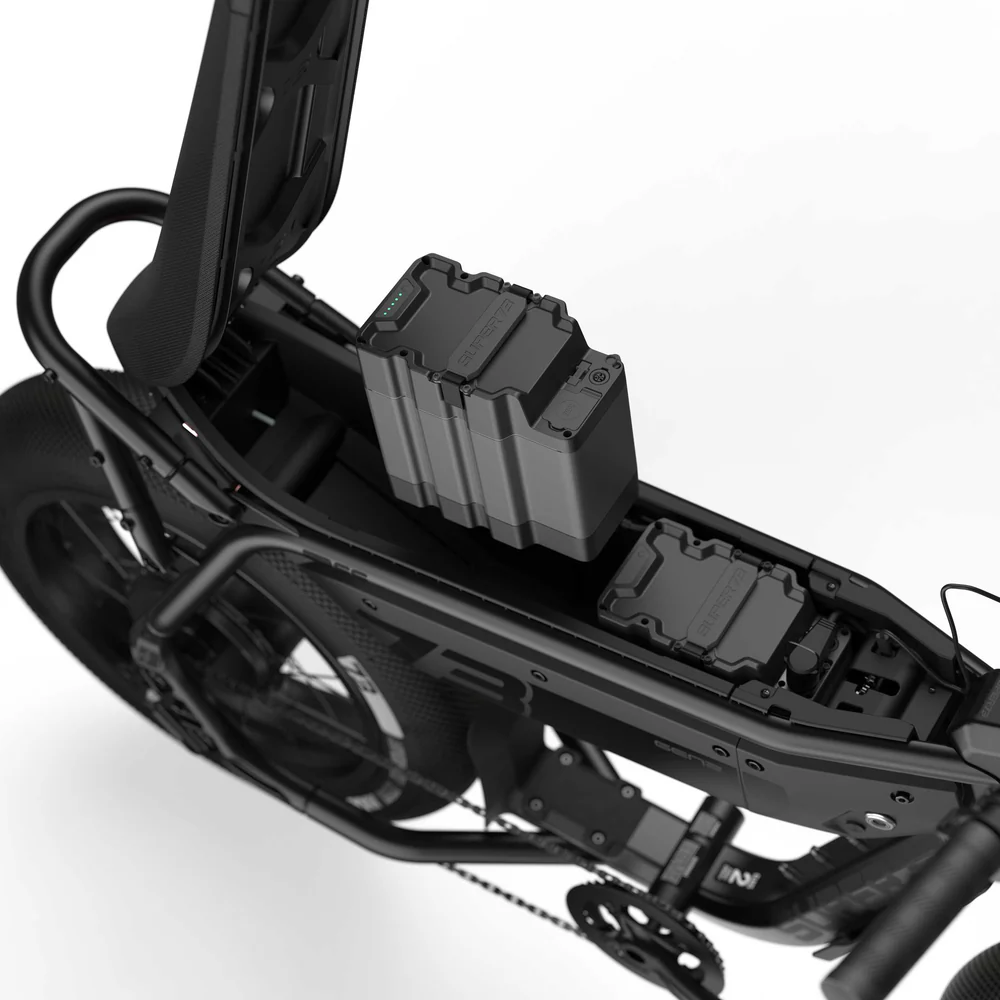

  • Dual Battery System: Built-in capacity to run a second modular battery (sold separately) to instantly scale your range to a massive 50–55 miles.

• Gearing: Pure Single-Speed drivetrain. This design keeps mechanical maintenance at absolute zero, allowing the high-torque hub motor and thumb throttle to do the heavy lifting.

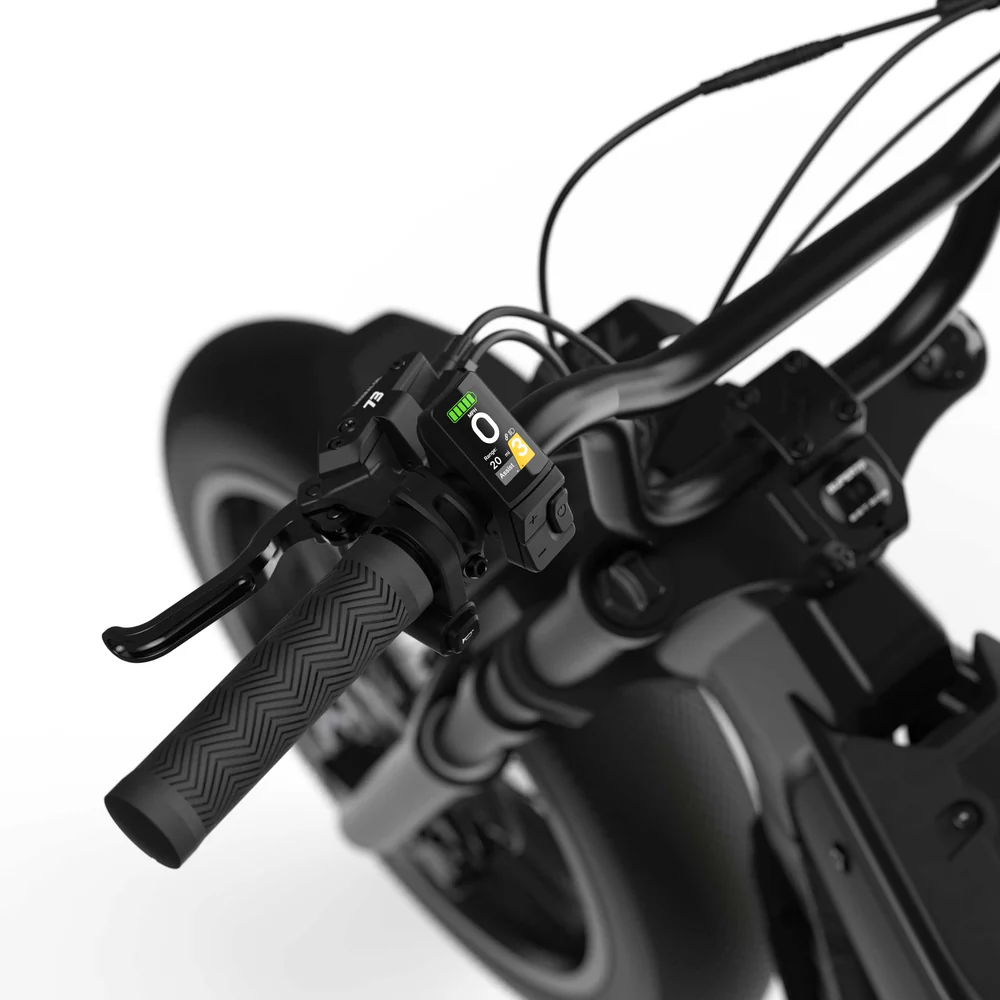

• Display System: Includes the updated A-Series digital smart display, providing clear, real-time readouts for battery life percentage, current speed, estimated remaining range, and pedal-assist level.

  • Note: The M1D SE relies on this streamlined, standalone display system to output critical ride telemetry efficiently without requiring a smartphone app pairing.

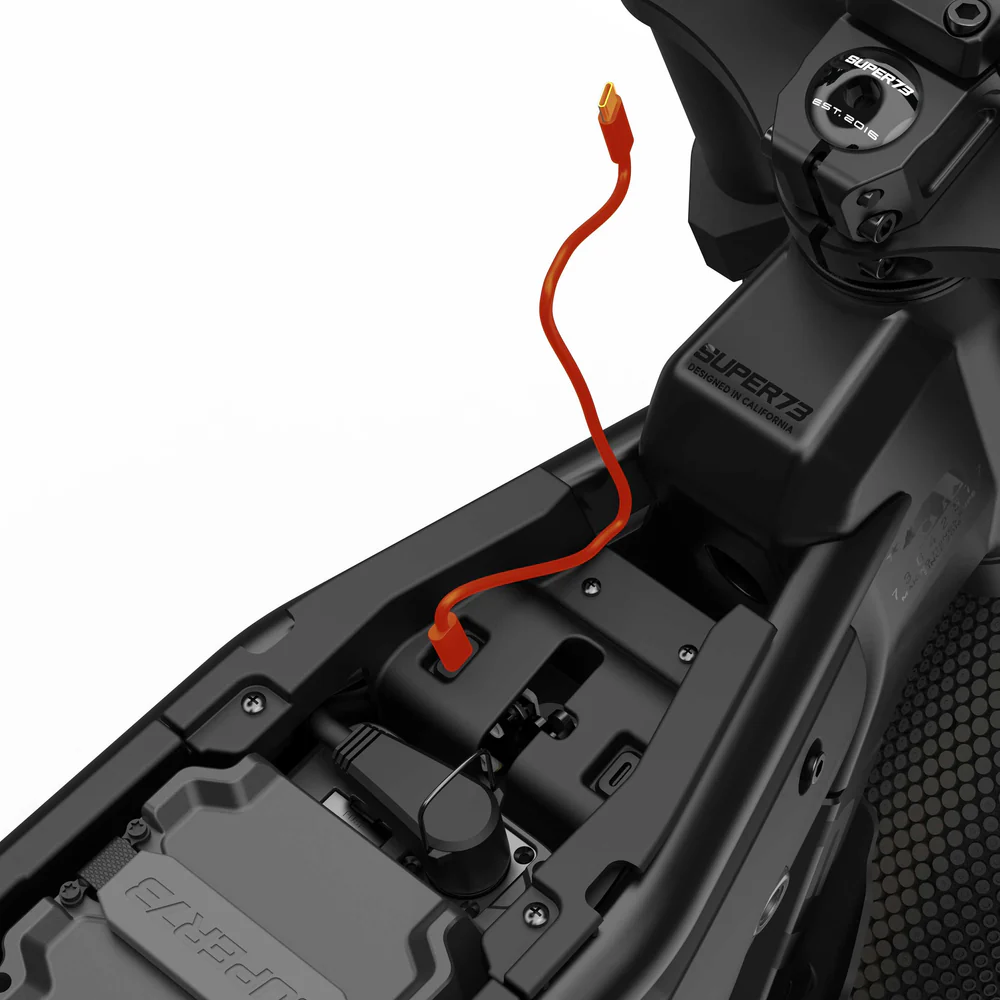

• On-The-Go Charging: Includes dual USB-C charging ports hidden safely inside the seat compartment to keep your mobile devices or cameras charged while riding.

• Charge Time: 6–7 hours to a full charge.

🛠️ Key SE (Special Edition) Upgrades

Opting for the M1D Special Edition over the base Core platform implements crucial component upgrades designed for a much more premium ride:

• Adjustable Front Suspension Fork: Replaces the rigid front end with an adjustable front suspension fork to iron out bumps, curb drops, and rough roads.

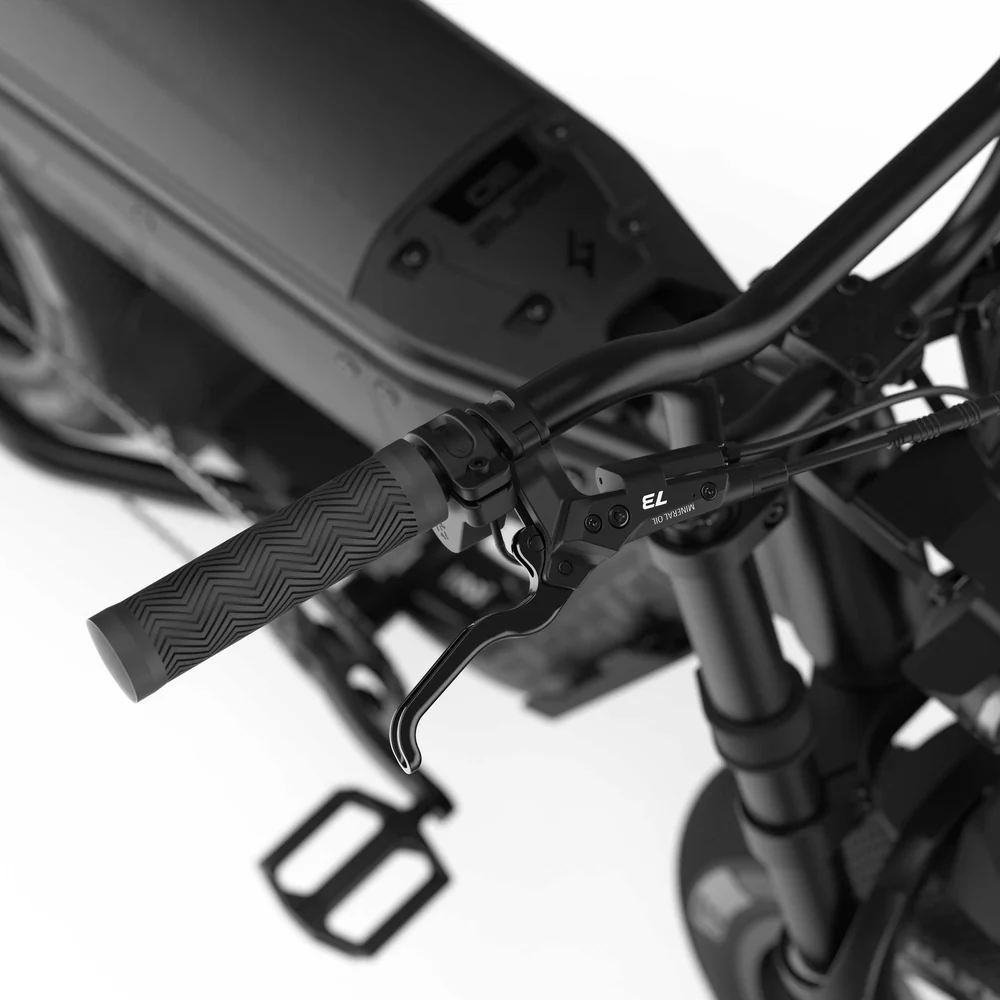

• Elite 4-Piston Hydraulic Brakes: Upgraded to heavy-duty SUPER73 4-piston hydraulic disc brakes, maximizing heat dissipation and delivering crisp, immediate stopping power.

• Maxxis SuperSucker Tires: Outfitted with massive Maxxis SuperSucker fat tires (4.5″ front / 5″ rear) featuring a high-traction, wrap-around street dimple pattern for confidence-inspiring lean angles.

• Exclusive Trim Finishes: Available in premium, high-end Special Edition colorways—namely Baja and Blackout.

📐 Dimensions, Weight & Fit

• Seat Height: Fixed 30″ seat height. Perfectly positioned as the mid-tier frame size in the A-Series line (slotted right between the ultra-compact 27″ MZFT and the tall 33″ B1G).

• Recommended Rider Height: Form-factored to perfectly fit riders between 5’2″ and 6’2″.

• Rider Weight Limit: Supports up to 250 lbs max.

• Vehicle Weight: 88 lbs (fully assembled with the larger 780Wh battery pack and front suspension fork).

• Lighting & Horn: Factory-integrated high-output LED headlight, rear LED tail/brake light, and a handlebar-mounted horn.
