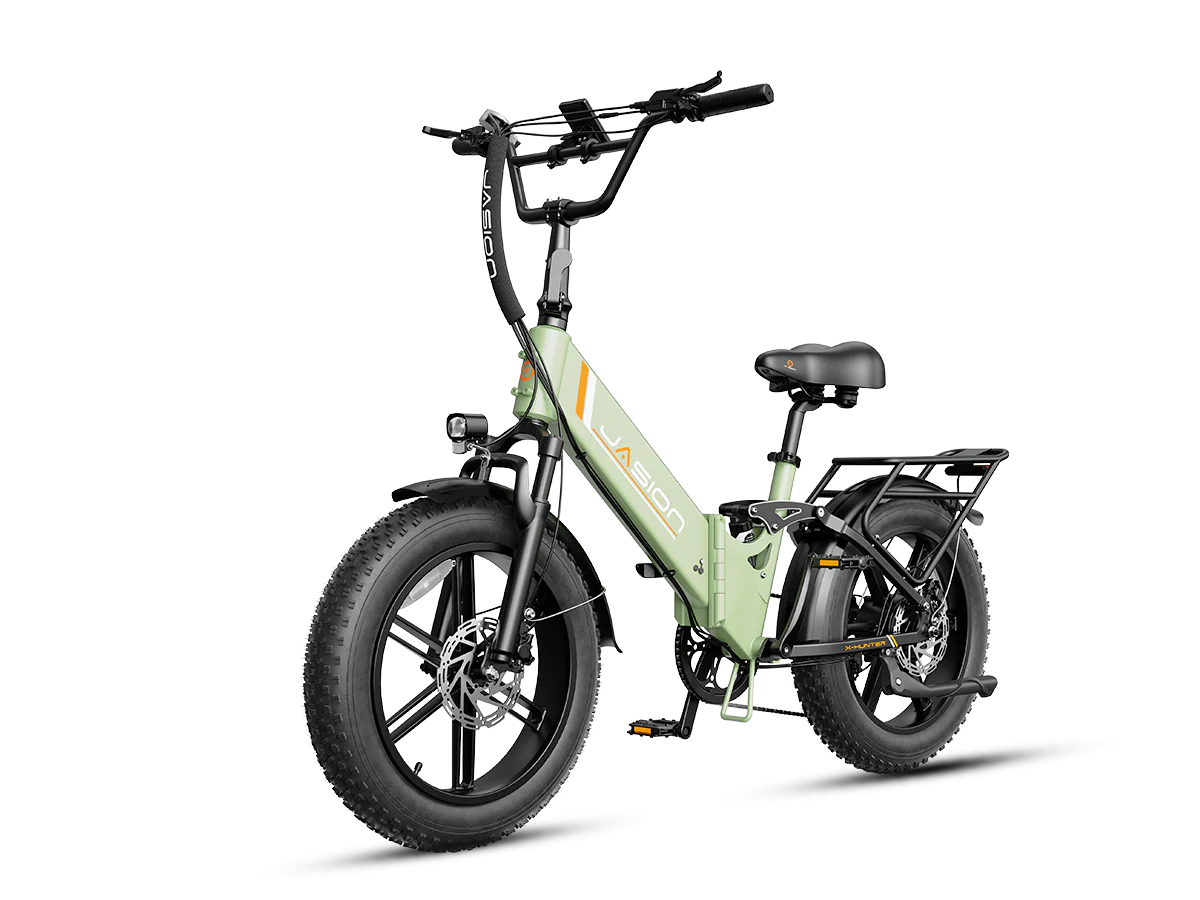

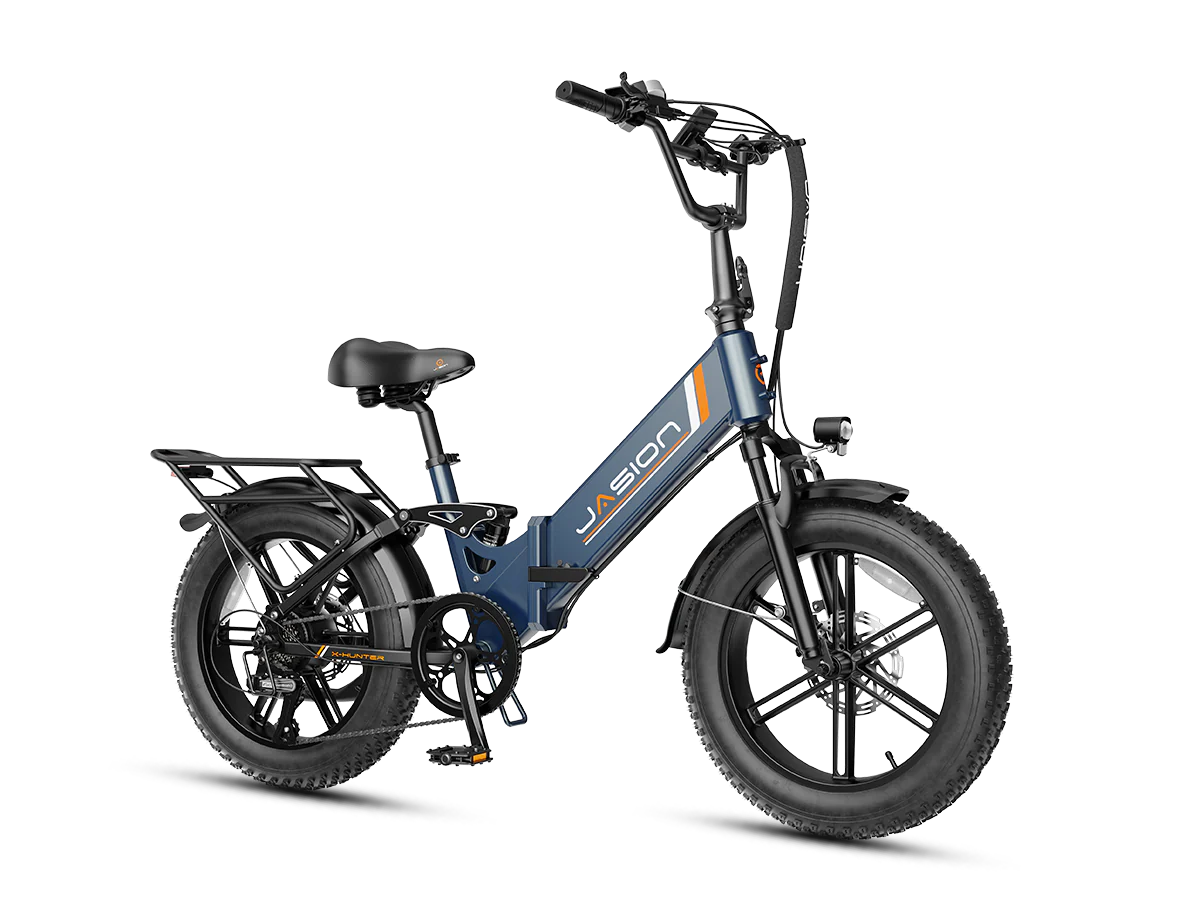

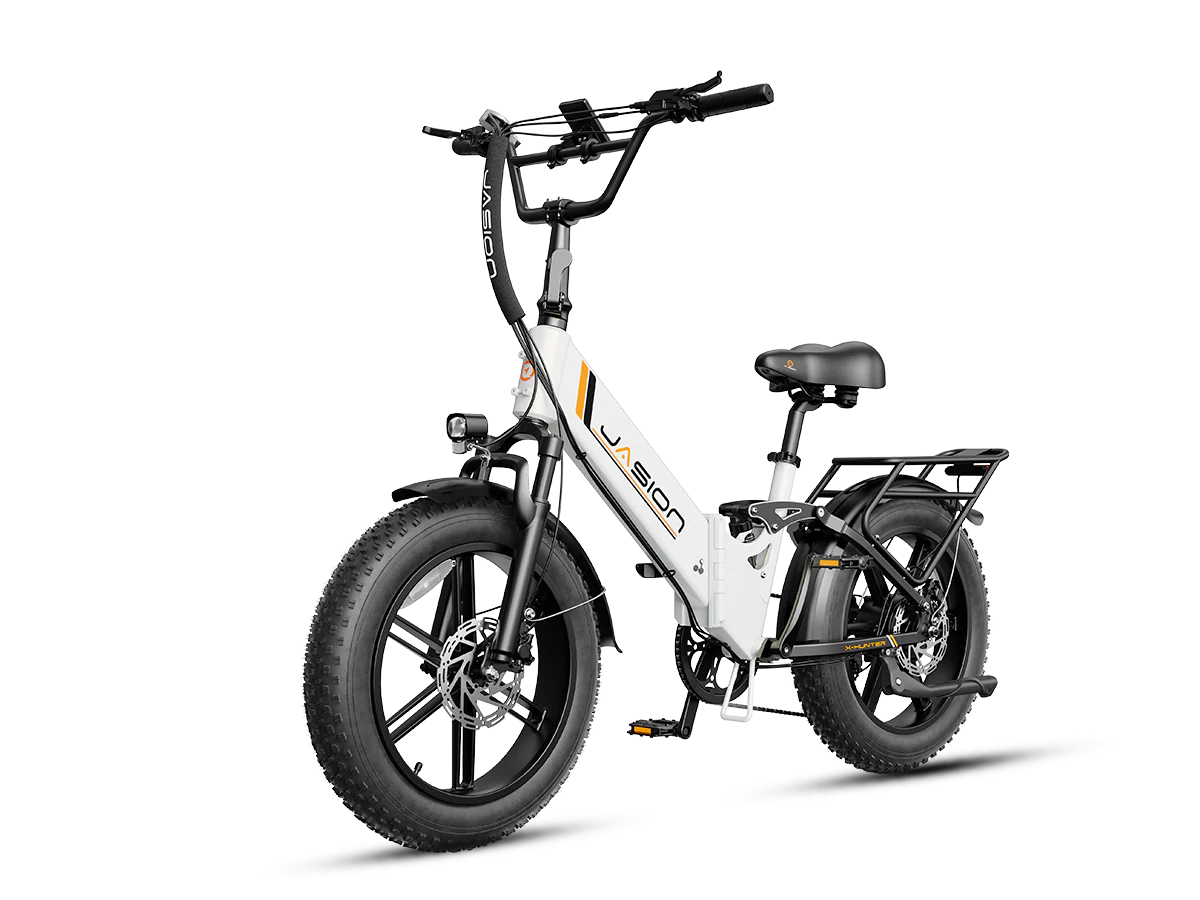

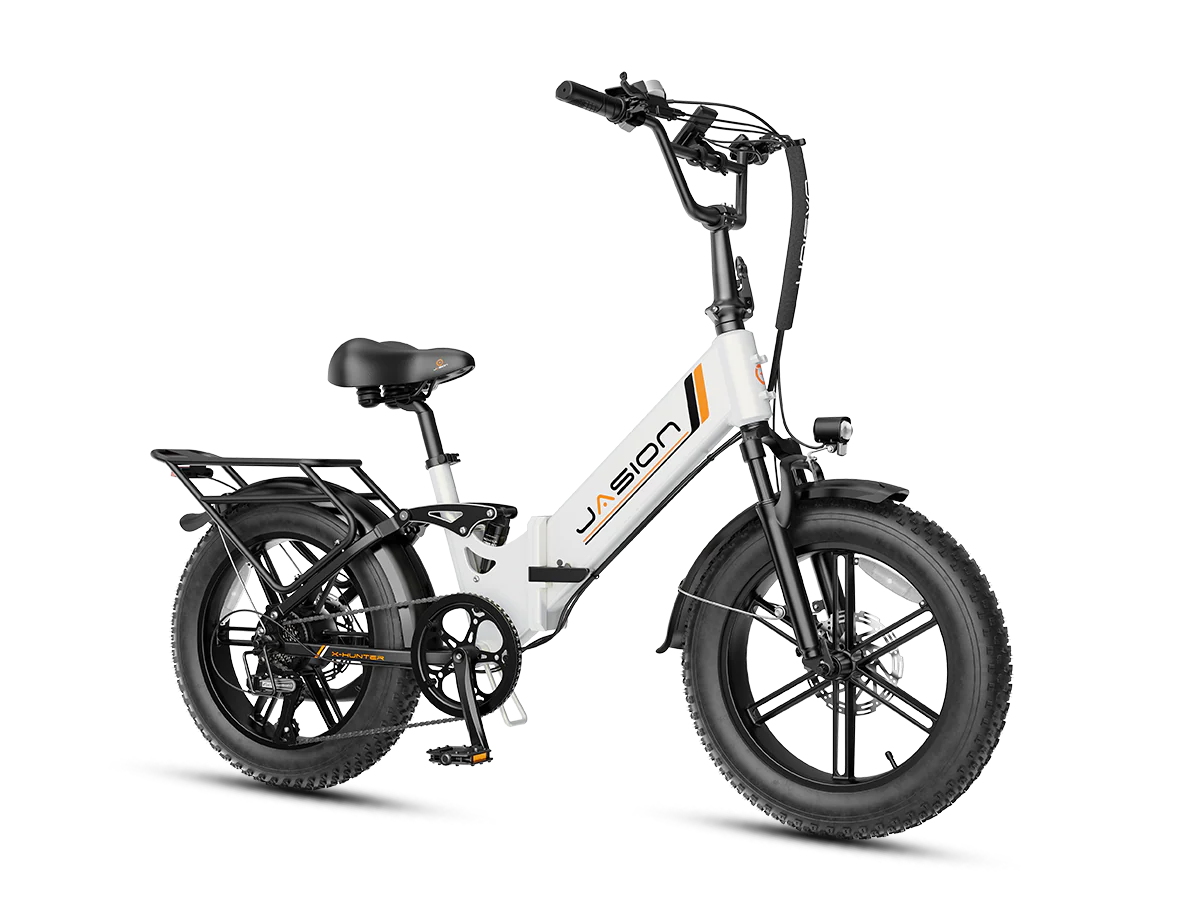

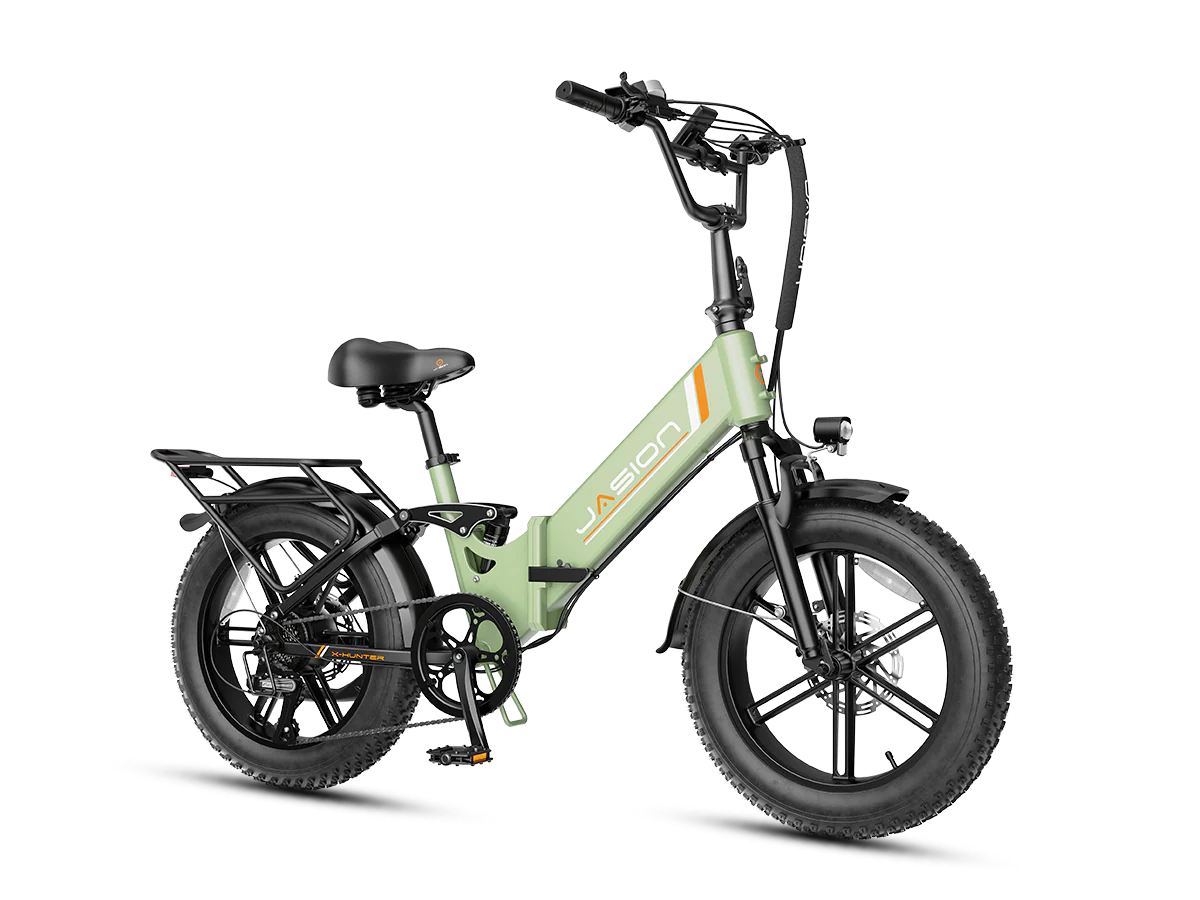

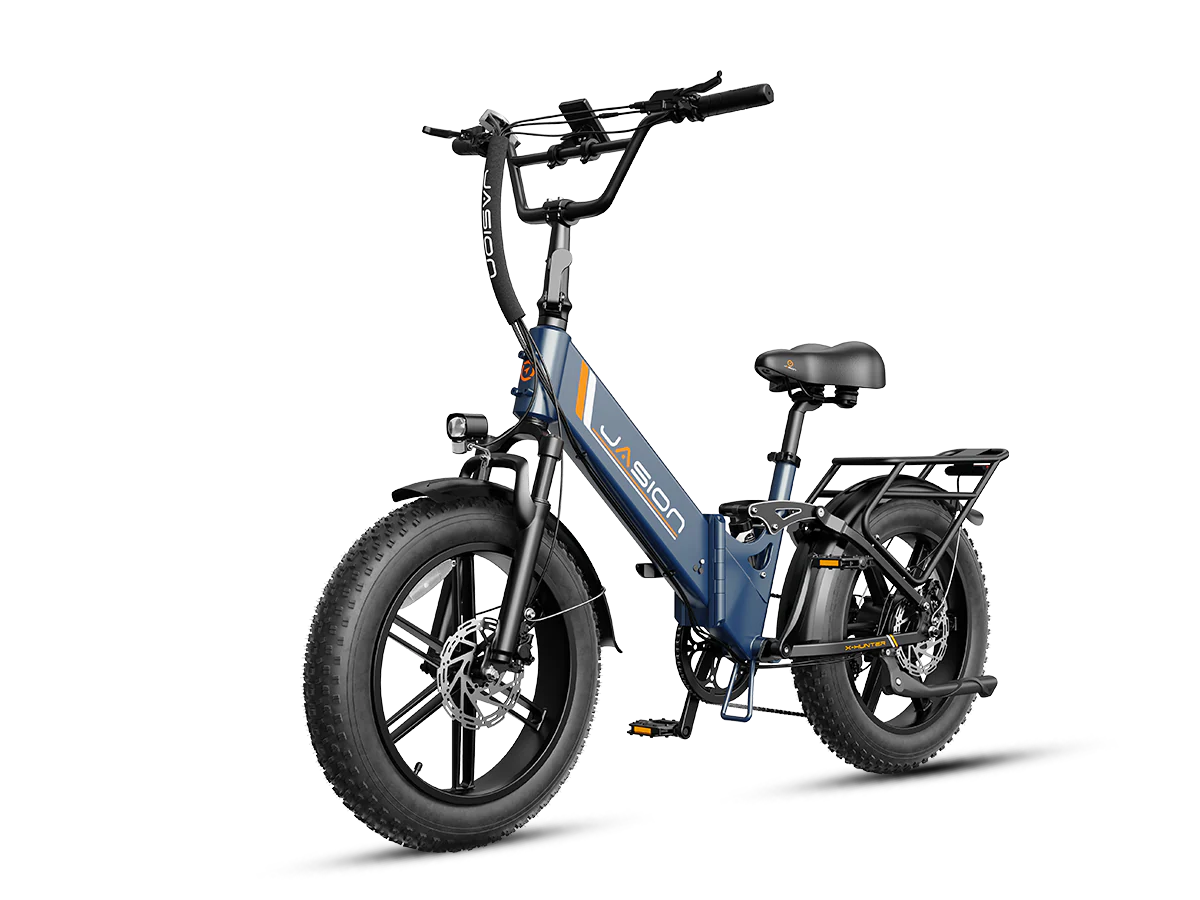

Official Jasion X-Hunter ST Folding E-Bike – 1400W Step-Through Fat Tire
Original price was: $2,576.00.$1,276.00Current price is: $1,276.00.
Full suspension comfort meets easy-mounting foldability. The Jasion X-Hunter ST delivers an incredible 1400W peak output, an upgraded 480 lbs maximum payload capacity, and reliable dual hydraulic disc brakes.
Break through boundaries without giving up storage space or ease of use. The Jasion X-Hunter ST takes the raw torque of an all-terrain folding fat tire e-bike and combines it with an ultra-accessible low-step frame. Designed with a reinforced four-link rear suspension and a massive 480 lbs maximum payload rating, this versatile cruiser tackles everything from sand and snow to daily urban deliveries before folding down effortlessly to fit inside your car trunk.
Core Benefits:
-
1400W High-Torque Peak Hub: Delivers 85 N·m of raw low-end torque to power up steep inclines and maintain top cruising speeds above 30 MPH.
-
Accessible Step-Through Structure: Features a low standover height that makes it incredibly easy to mount and dismount, even when the rear rack is fully loaded.
-
Plush Dual-Shock Full Suspension: Combines an 80mm adjustable front suspension fork with a four-link rear pivot layout to iron out bumpy trails and potholes.
-
Upgraded Hydraulic Stopping Power: Outfitted with premium dual hydraulic disc brakes that automatically cut motor power when squeezed for instantaneous stops.
Technical Specifications
| Feature | Specification |
| Motor Output | 750W Sustained / 1400W Maximum Peak Brushless Rear Hub Motor |
| Peak Torque | 85 N·m (Newton-meters) |
| Battery Configuration | Removable 48V 13Ah (624Wh) Lithium-Ion Battery (21700 Cells) |
| Estimated Top Speed | 30+ MPH (Class 3 Performance / Unlocked Off-Road) |
| Estimated Per-Charge Range | Up to 71 Miles (PAS Level 1) | ~35–45 Miles (Pure Throttle) |
| Braking Hardware | Front & Rear Hydraulic Disc Brakes (160mm Rotors) |
| Suspension Setup | Full Suspension: Adjustable Front Fork + Four-Link Rear Pivot Shock |
| Tire Profile | 20″ x 4.0″ Multi-Terrain Puncture-Resistant Fat Tires |
| Chassis Composition | Heavy-Duty Aluminum Alloy Folding Step-Through Frame |
| Total Payload Capacity | 480 lbs Maximum Combined Weight Rating |
| Drivetrain Components | Shimano 7-Speed Mechanical Gear Shift System |
| Folded Dimensions | 43.3″ × 23.6″ × 32.7″ (110 cm × 60 cm × 83 cm) |
| Product Net Weight | 71 lbs (Including Removable Battery Pack) |
| Charging Logistics | 5 to 6 Hours via Standard 48V Smart Charger |
| Recommended Rider Heights | Accommodates heights from 5’3″ to 6’4″ |
