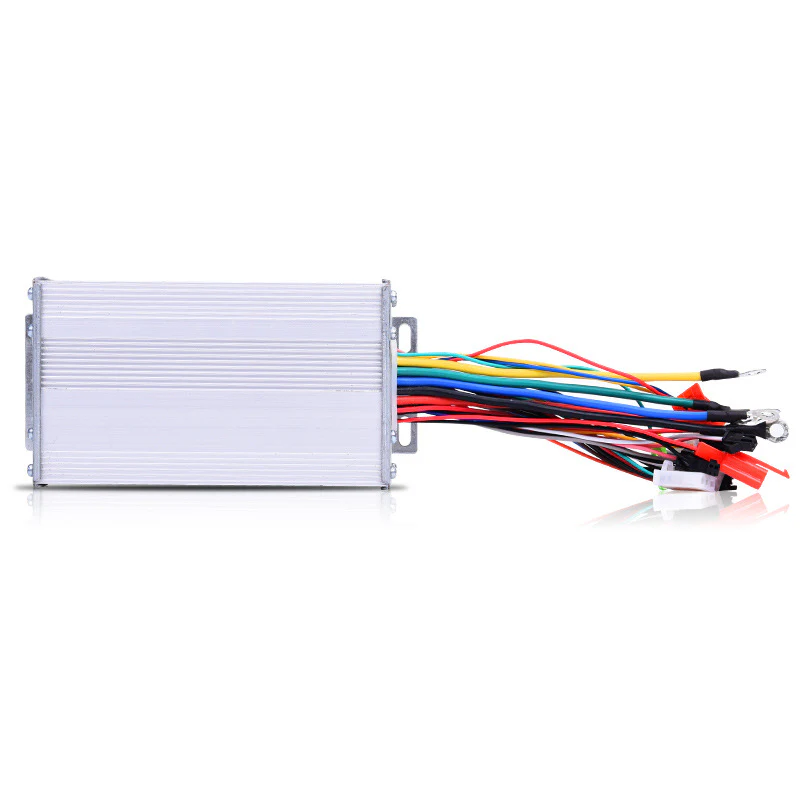

Official Happyrun Smart Brushless Motor Controller – Core Electronic Power Distribution Unit

The High-Performance Central Processor of Your Ride An electric bike’s motor is only as good as the brain directing it. The Official Happyrun Motor Controller handles the complex, real-time math of managing heavy current loads, regulating instant twist-throttle response, and deploying smooth Pedal Assist System (PAS) power stages. Forged to exact factory specifications, this direct replacement eliminates common electronic faults like stuttering acceleration, intermittent power loss, and display communication errors—instantly reviving your bike’s original day-one performance.

Advanced Heat Dissipation & Heavy-Duty Casing High-current riding across steep hills or sustained top-speed commutes generates intense thermal energy. To combat this, the Happyrun controller core is encased in an industrial-grade aluminum alloy shell with an optimized grooved design. This deeply channeled metal housing serves as a high-surface-area heat sink, pulling destructive thermal spikes away from the sensitive internal circuit board, preventing thermal throttling, and ensuring steady, unyielding power delivery across the hot summer months.

Seamless Plug-and-Play Factory Wiring Integration Forget the nightmare of guessing naked wire functions or manual soldering. This official controller comes pre-wired with authentic, weather-sealed quick-connect terminal plugs that match your Happyrun layout perfectly. From the heavy-gauge main battery lines to the sensitive display, throttle, and brake-cutoff signal connections, every line is precision-bound and color-coded. This ensures a clean, flawless drop-in installation process that gets your ride back on the road without specialized electronic tools.

HARDWARE SPECIFICATIONS & CIRCUITY PROFILE

• Casing Composition: Extruded Heavy-Duty Grooved Aluminum Alloy Thermal Chassis

• Motor Control Mode: High-Efficiency Smart Brushless Waveform Modulation (Provides steady speed and silent operation)

• Wiring Terminals: Pre-Assembled, Color-Coded Weather-Resistant Quick-Connect Multi-Pin Plugs

• Thermal Protection Matrix: Structural External Heat-Dissipation Channel Layout

• Safety Engineering: Integrated Low-Voltage Drop Protection & Multi-Stage Current Overload Shielding

• System Integration: Direct drop-in compatibility with factory Happyrun throttles, LED displays, PAS sensors, and brake-cutoff calipers

📦 What’s Included in the Box

• 1x Official Happyrun Smart Brushless E-Bike Motor Controller Core

• 1x Fully Integrated and Color-Coded Factory Wiring Harness

• 1x Step-by-Step Technical Pinout Wiring Schematic & Alignment Guide
